ecoTUFF-TPO
Sealco, the First in NZ TPO Market.
Sealco Waterproofing are proud to be the first in the market with EcoTUFF TPO membranes. Introduced to NZ in 2004, EcoTUFF has gained much popularity in the New Zealand market mainly due to the quality, price and added features.
Available Colours
EcoTUFF TPO membrane is a co-polymer of polypropylene and ethylene propylene rubber that has been formed into a membrane sheet and reinforced with a heavy duty polyester scrim. This means you get a flexible rubberised material with the ability to be heat welded for permanent detailing.
A ‘second generation’ single ply product, EcoTUFF marries the advantages of previous generation materials while eliminating their limitations. The result is a roofing membrane that is faster and easier to install yet offers outstanding resistance to weathering, temperature extremes, ultraviolet exposure and a whole wide variety of industrial chemicals.
Some of the advantages of ecoTUFF
- Extra wide sheet (up to 3.7m wide x 30.4m long)
- Heat weldable seams and detailing
- High strength, polyester reinforced
- Suitable for low slope roofs, gutters, ponds and garden or warm roofs (see skyGARDEN & Warm Roof pages)
- Eco Friendly
- Heat reflecting colours available
- Highly trained nationwide installers for superior quality finish
Downloads
Related Projects
Downloads
Product Information
Ultrastick Spray Adhesive
PDF (0.12MB)
Colour Options 2018
PDF (0.35MB)
EcoTUFF BROCHURE
PDF (0.82MB)
ecoTUFF Manual
PDF (2.95MB)
ecoTUFF BRANZ appraisal
PDF (0.56MB)
EcoTUFF RhinoBond TPO Thermo Fixings
PDF (0.62MB)
Sealco Accessories 2016
PDF (5.52MB)
EcoTUFF TPO Concrete Substrate Checklist
PDF
EcoTUFF TPO Plywood Substrate Checklist
PDF
EcoTUFF TPO QC Sheet
PDF
EcoTuff TPO Maintenance Sheet
PDF
Architectural Information
4422WT - Sealco EcoTUFF Membrane Spec
PDF (0.10MB)
4422WT - Sealco EcoTuff WarmSEAL Spec
PDF (0.15MB)
4422WR - Sealco EcoTUFF GreenSEAL Spec
PDF (0.14MB)
MSDS Information
EcoTuff Test Results
PDF (0.21MB)
Hi Tuff TPO Bonding Adhesive-SDS May 2019
PDF (0.35MB)
Hi Tuff TPO Membrane and Accessories SDS
PDF (0.37MB)
Hi Tuff Cut Edge Sealant - SDS May 2019
PDF (0.27MB)
Weathered Membrane Cleaner - SDS May 2019
PDF (0.28MB)
Ultrastick SDS
PDF (1.04MB)
Drawings
External Gutter Type 1
Barge Board 2
Barge Board 1
Rainwater Head Scupper Outlet
FlowRITE Outlet Scupper Section
FlowRITE Outlet Scupper Plan
FlowRITE Overflow Scupper Section 1
Overflow Scupper Section 2
Batten Join
Substrate Join
Roof Skylite
VentRITE Substrate Moisture Outlet
VentRITE Roof Vent Outlet
DrainRITE Water Outlet 1 - Ring Clamped
External Gutter Type 2
Gutter Wall Type 1
Gutter Wall Type 2
Gutter Parapet
Internal Gutter
Chase Termination
Compress Termination
ecoJACK Paver-Wall Detail Type 1
ecoJACK Paver-Wall Detail Type 2
ecoJACK Paver-Threshold Detail Type 1
ecoJACK Paver-Threshold Detail Type 2
Timber Raft Floating Deck-Wall Detail - Type 1
Timber Raft Floating Deck-Wall Detail - Type 2
Timber Raft Floating Deck-Threshold Detail - Type 1
Timber Raft Floating Deck-Threshold Detail - Type 2
Tile Balustrade Junction
DrainRITE Water Outlet 2 - Ring Clamped
DrainRITE Water Outlet 3 - Ring Clamped Dome
DrainRITE Water Outlet 4 - Ring Clamped
DrainRITE Water Outlet 5 - Ring Clamped Dome
DrainRITE Water Outlet 6 (Dropper) - Ring Clamped Dome
DrainRITE Water Outlet 7 (Dropper) - Ring Clamped Dome
EcoT41 Plinth

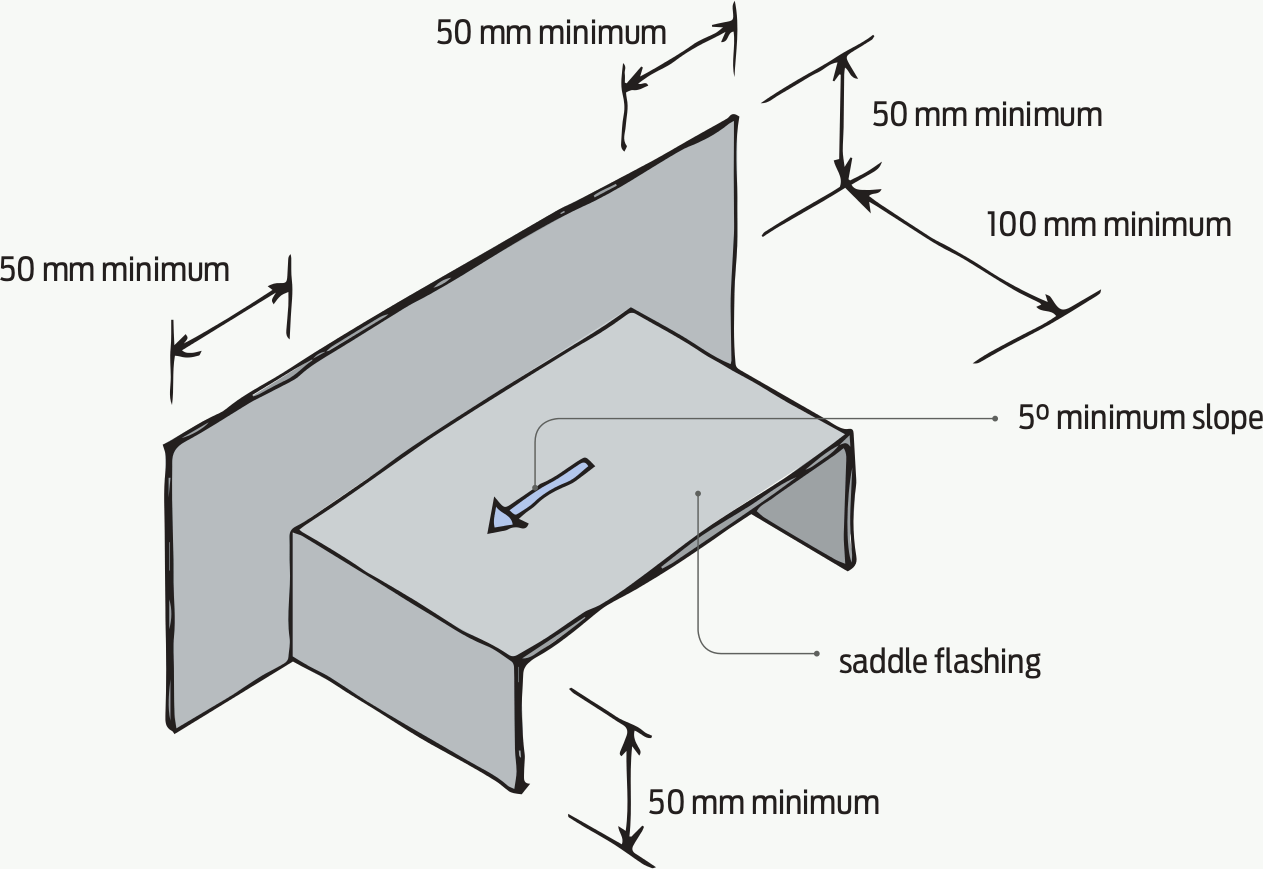

Membrane Saddle Flashing
